//DJ’s Arcade at Chipping Norton Hotel

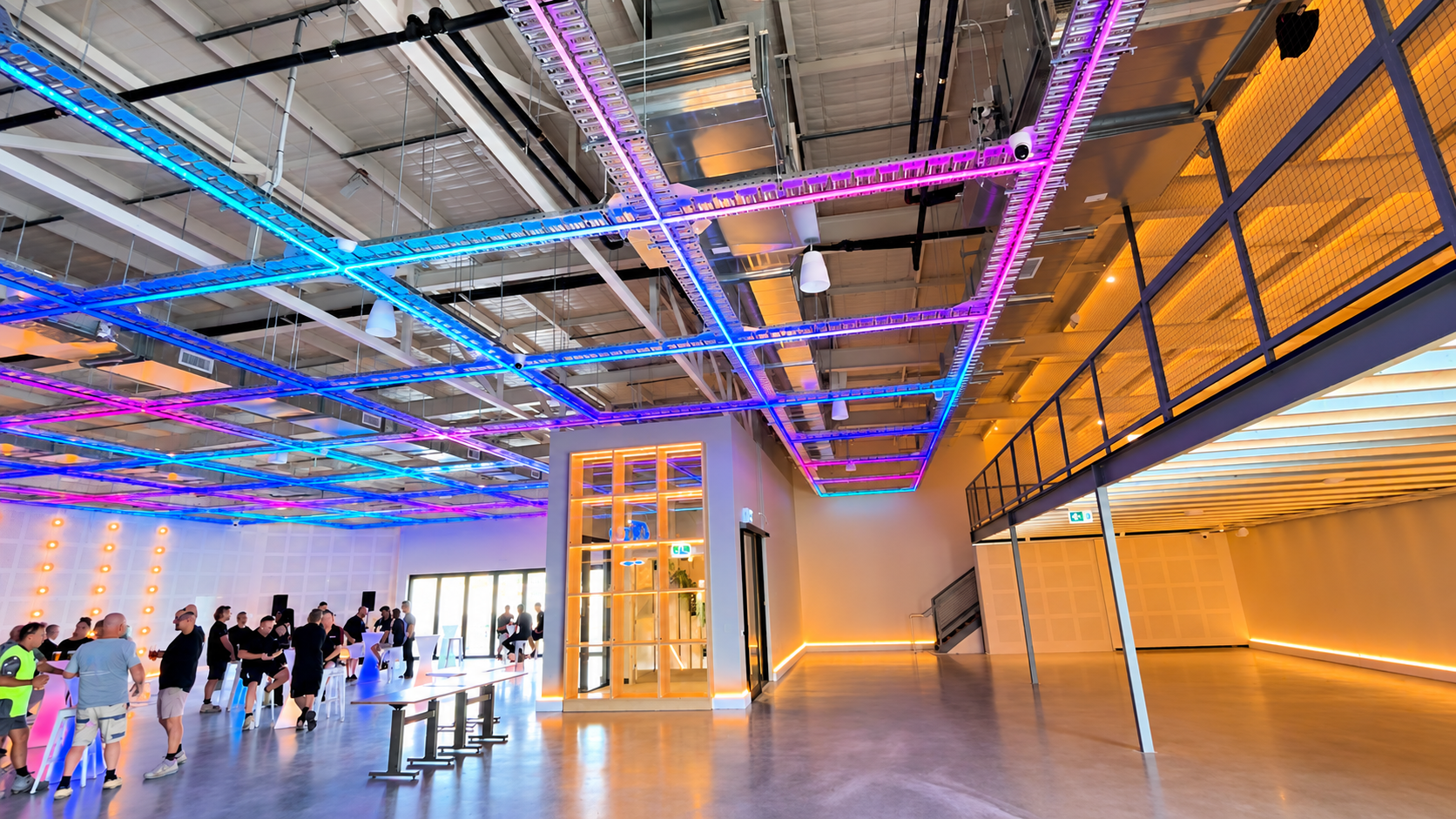

Light-Ctrl was approach by the electrical contractor for DJ’s Arcade fit out at the Chipping Norton Hotel in Sydney to design and deliver a lighting system for the client’s brief. The concept of which was to have a media mapped, pixel ceiling feature for their immersive family entertainment venue.
Solution—
Several hundreds of metres ofLight-Ctrl’s Vectrpix vLinear Pixel RGBW fixtures in project specific lengths and at 60x RGBW pixels per meter were deployed for the fit-out, along with Advatek PixLite Mk3 controls.
The Vectrpix fixtures were designed and manufactured to an as-built dimensional takeoff from the installed cable tray in the ceiling to which the lighting was to align. Supplying each section as a ready-to-install system, using a simple surface-mount bracket to fix everything in the ceiling. This maintained the architectural alignment while significantly reducing installation time, on-site modification and the risk of inconsistent workmanship.
Controls—
Advatek PixLite Mk3 Long Range transmitters were housed in a centralised communications location, while the compact receivers were installed close to the individual lighting sections and paired with a suitably rated 24V power supply. This system architecture reduced the length of the pixel-level wiring, simplified distribution throughout the venue and created an even more robust, serviceable installation.
Dynalite was integrated to allow venue staff to engage with a simple and familiar control system without requiring them to operate or maintain a media server or lighting console.
Our Services» Lighting Systems Design, Supply and Integration, Content Development and Programming, Commissioning
Project Partners» Don Hodge Group, Dewtask Electrical
